FORTERRA Large Frame Ag Series

Engine and transmission

Powerful, smooth operation with low fuel consumption.

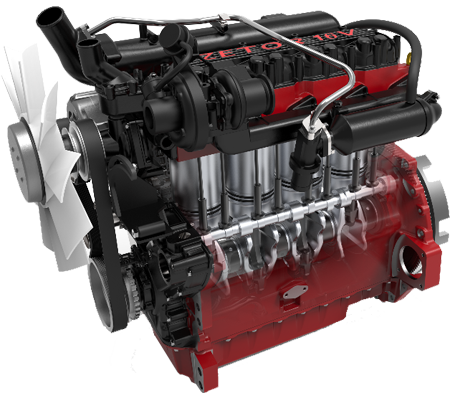

The exceptional popularity of Zetor manufactured diesel engines is based on low fuel consumption, high reliability and simple design. These new mechanical engines are equipped with an electronic governor that reward’s the customer not only with low operating costs but also in longevity, reliability, low maintenance and service intervals.  The new engines are shut off by the ignition key switch.  No costly sensors are found on Zetor T4F engines.  Only the emissions are regulated with sensors to meet the stringent T4F USA/Canada standards.

Power 118-157 EHP

  • HSX Engine Power Range:  127 HP to 147 HP
  • CL Engine Power Range:  118 HP to 137 HP
Zetor engines do not use Power Boost. Full power is always available regardless of load.


1178 1179



  • ZETOR IN HOUSE DESIGN, DEVELOPMENT AND MANUFACTURING. Full control of what goes into each tractor built.
  • LOW FUEL CONSUMPTION Ensures low operating cost using Zetor’s mechanical fuel injection system with an electronic governor.
  • TWO BALANCE SHAFTS Ensures the a smooth running engine with reduced vibrations often found in other manufactured diesel engines.
  • NO POWERBOOST Zetor diesel engines have full power available regardless of what speed the tractor is traveling or whether the PTO has been engaged.

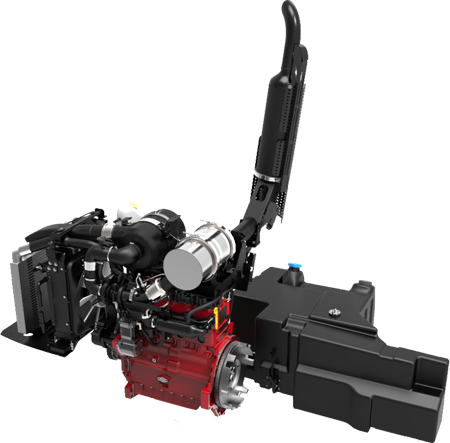

  • ZETOR Emissions uses a combination of DOC catalyst, an active DPF filter and SCR technology, urea (DEF blue fluid) exceeding the most stringent T4F government regulations.
  • There are No engine sensors. Without the need of the costly common rail fuel injection system most all other manufactures use, Zetor continues to use their time proven mechanical injection system with an electronic governor.
  • FIXED GEOMETRY TURBOCHARGER Air-to-air aftercooling with cooled exhaust gas recirculation (using engine coolant).
  • PRESSURIZED OIL - COOLED PISTON CROWNS Increases combustion efficiency and extends engine life.
  • Wet Cylinder Liners increases life of the engine and all components.



Transmission

HSX SERIES

1180ZETOR manufactures their own transmissions and differentials in Brno, Czech Republic for the HSX & CL Series tractors.  The HSX Series tractors are equipped with the proven and reliable 30F/30R Semi-Powershift transmission with Power Shuttle and PowerClutch™ (De-Clutch) function.

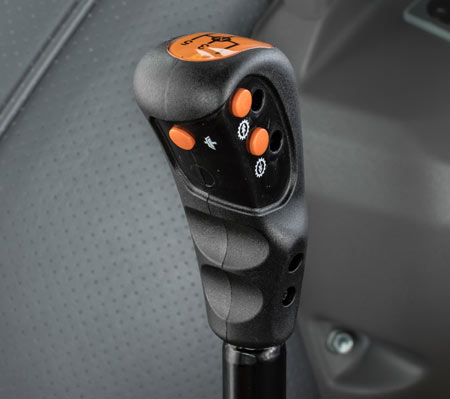

The buttons shown on left side of control knob operates the powershift manually and the button on front side operates the PowerClutch™ (De-Clutch) function which enables the operator to shift through the 5-speed without having to depress the transmission clutch pedal.  The powershift can also be set-up to shift automatically.

1181The The HSX Series tractors have a broad range of (13) transmission working speeds between 2.48 MPH and 7.45 MPH, delivering maximum fuel economy, performance and productivity.

HSX Powershift buttons shown in 1st picture, PowerClutch™ (De-Clutch) shown in 2nd picture and the Power Shuttle control paddle is shown in the 3rd picture to the right, 4th picture illustration of transmission with Power Shuttle Clutch Pack and Powershift (Torque Multiplier) with helical cut gear sets. 1205

CL SERIES

1183The CL Series tractors have (7) working speeds between 2.48 MPH and 7.45 MPH optimizing fuel economy and performance at a lower cost than the Premium HSX Series.

The Semi-Powershift works in the same fashion as the Premium HSX Series but with a 4-speed transmission for a total of 24F/18R instead of the 5-speed that’s in the HSX 30F/30R tractors.

CL Series Powershift buttons shown in 1st picture and the Mechanical Shuttle Control Lever shown in the 2nd picture, the 3rd picture illustrates the Powershift (Torque Multiplier) with mechanical helical cut gears.

1208

1474

PTO

Both the HSX and CL Series tractors use multi-wet clutch packs for the Independent PTO assembly.  This IPTO system ensures smooth engagement and long life of the clutch packs running in a pressurized oil bath.

All models have 4-speed PTO:  540/540E/1000/1000E Independent rear PTO.  The tractors are shipped with the 1000 Shaft inside the Cab toolbox.  The interchangeability is simple without any oil spill.  The IPTO is engaged with an electro-hydraulic 2-position switch in the cab.

HYDRAULICS

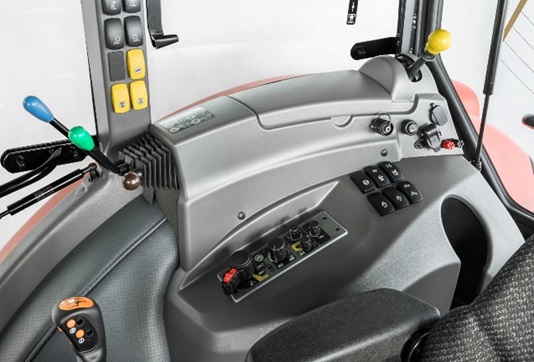

All models are equipped with Bosch electro-hydraulics with Zetor HITCHTRONIC™ (ELC) function of the 3-point hitch with lower link electronic draft control, plus position and mix controls with precise measurements.  The rear remote valves are mechanically operated with hand controls on front side of righthand console.

1475

3 - POINT HITCH

Both the Premium HSX and CL Series tractors come standard with left/right outer fender control buttons for the 3-Point Hitch and rear PTO shut-off button.  The lifting system is the strongest in the industry out of any brand sold.  Each model features an inner piston inside the hydraulic cavity plus 2-outer auxiliary lift cylinders with a lift capacity rating of 14,400 Lbs., 24” behind the ball ends.

The 3-Point hitch arms are CAT 2 with HD extendable ball ends and HD telescopic stabilizers including a HD swinging drawbar with hammer-strap and pin.

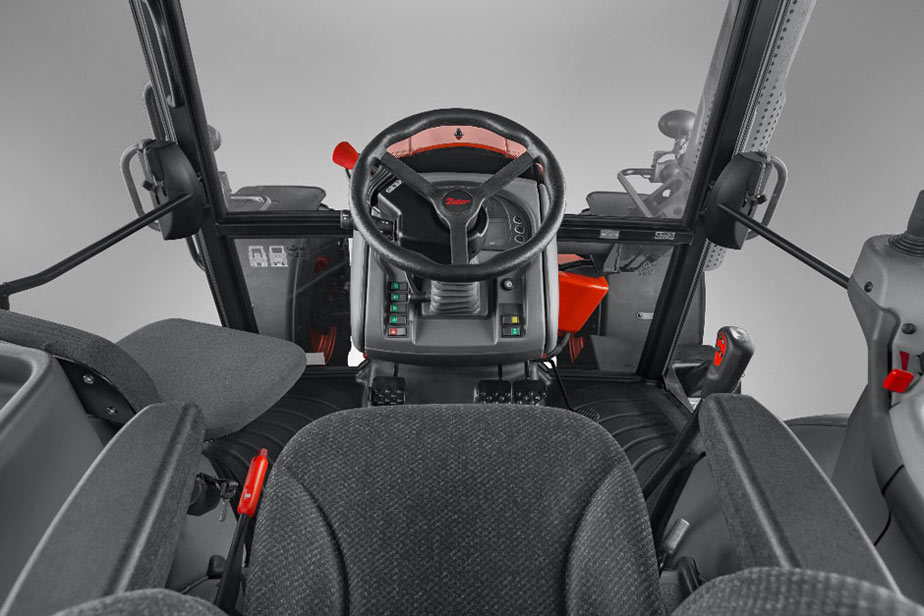

ALL WEATHER CLIMATE CONTROL PREMIUM CAB

HSX & CL Series

  • Climate Control including AC/Heater/Forced Air front windshield defrost, Electric rear window defrostStereo ready with speakers and antenna
  • Premium Cloth Air-ride suspension seat with swivel/recline/for/aft/rocker control/dual armrest & retractable seatbelt
  • Premium cloth foldable instructor seat & retractable seatbelt
  • Tilt wheel with telescopic steering column
  • Locking L/R doors, L/R corner windows and rear window
  • Telescopic L/R heated outer mirrors
  • F/R Wipers with washer tank
  • 3-Mechanical control rear remote valves, all 4-way premium sections with float/detent/DA/SA
  • Windshield sun screen

For more information on the Premium HSC and CL Series tractors from Zetor North America, please visit your local Full Service Zetor NA Dealer and or call Zetor North America @ 904-647-7169 and ask to speak with the Sales Manager in your region.

Zetor FORTERRA Premium HSX and CL Series Brochure PDF File.
